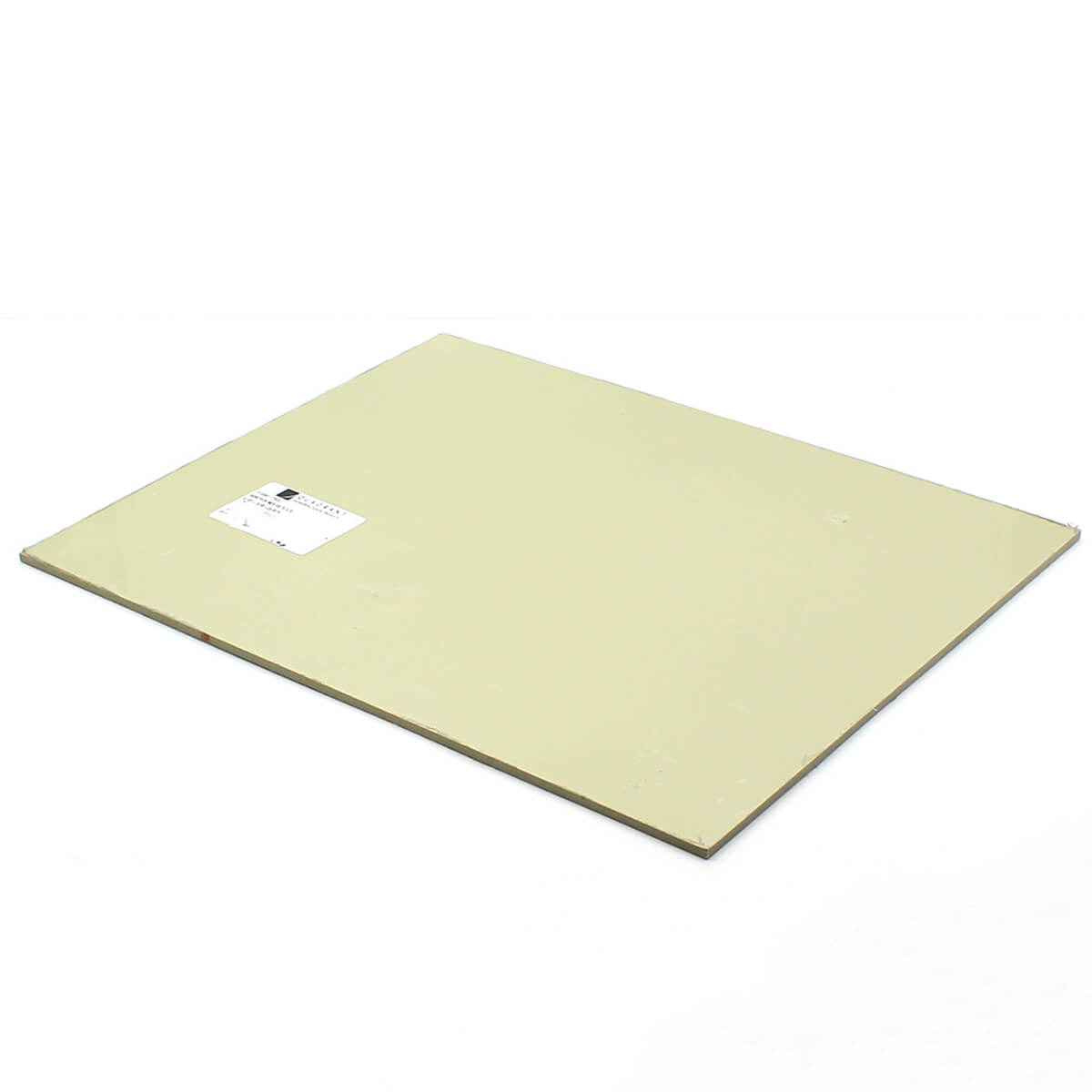

Semitron ® MDS 100 PEEK

Compliance Info

Slide 1 of 2, currently active
Slide 2 of 2

General Info

Semitron® MDS 100 modified PEEK has a remarkable combination of strength, stiffness and stability. It was developed to be used in uncontrolled application environments or where a high level of precision is required. It is an ideal choice for semiconductor test sockets, nests and fixtures in test and package equipment.

Click for more information on the complete line of Semitron Plastics

Key Properties

Thermal Performance to 410°F (210°C) Continuous Use Temp
High Strength, Stiffness & Stability
Moisture absorption of .10% at 24 hrs. (per ASTM D570).
Flexural modulus > 1,400,000 psi

Limitations

Poor Chemical Resistance to Halogens and Their Acids Including Bromine, Chlorine, Fluorine, HBr and HF

Applications

Semiconductor Test Sockets
Semiconductor Nests
Fixtures in Test And Package Equipment

Resin Trade Names

Manufacturer Trade Names

Semitron® MDS 100

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Available Colors

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of Semitron ® MDS 100 PEEK

DETAIL
Description			Value
Material Type			Semi-Crystalline Thermoplastic
Chemical Name			PEEK Polyetheretherketone
Trade Name			Semitron® MDS 100
Additives			Proprietary Additives
Color			Tan
Manufacturer			Quadrant
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.51
	ASTM D792	lb/in³	0.055
Water Absorption, 24 hrs, Immersion	ASTM D570	% by wt.	0.1
Water Absorption, Saturation, Immersion	ASTM D570	% by wt.	0.58
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	14,700
Tensile Modulus	ASTM D638	psi	1,500,000
Tensile Elongation at Break	ASTM D638	%	1.5
Flexural Strength	ASTM D790	psi	20,500
Flexural Modulus	ASTM D790	psi	1,420,000
Compressive Strength	ASTM D695	psi	24,400
Compressive Modulus	ASTM D695	psi	1,100,000
Hardness	ASTM D785	NA	Rockwell R121
IZOD Impact-Notched	ASTM D256	ft-lb/in	0.4
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D696	x 10-5 in./in./°F	1.1
Heat Deflection Temp	ASTM D648	°C at 264 psi	210
	ASTM D648	°F at 264 psi	410
Melting Point Temp	ASTM D3418	°C	340
	ASTM D3418	°F	644
Max Continuous Operating Temp		°C	249
		°F	480
Minimum Operating Temp		°C	-60
		°F	-76
Thermal Conductivity	ASTM C117	BTU-in/ft²-hr-°F	1.73
ELECTRICAL
Property	Test	Unit of Measure	Value
Dielectric Constant at 1 MHz	ASTM D150	NA	3.37
Dissipation Factor at 1 MHz	ASTM D150	NA	0.007
Surface Resistivity	ASTM D257	ohm/square	>10^13
COMPLIANCE
Description			Value
FDA			No
USDA			No
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
UV Resistant			No
Relative Cost			$$$$$$$
Machinability			5

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

Semitron® is a registered trademark of Quadrant Engineering Plastic Products.
