Semitron ® ESd 500 HR PTFE

Compliance Info

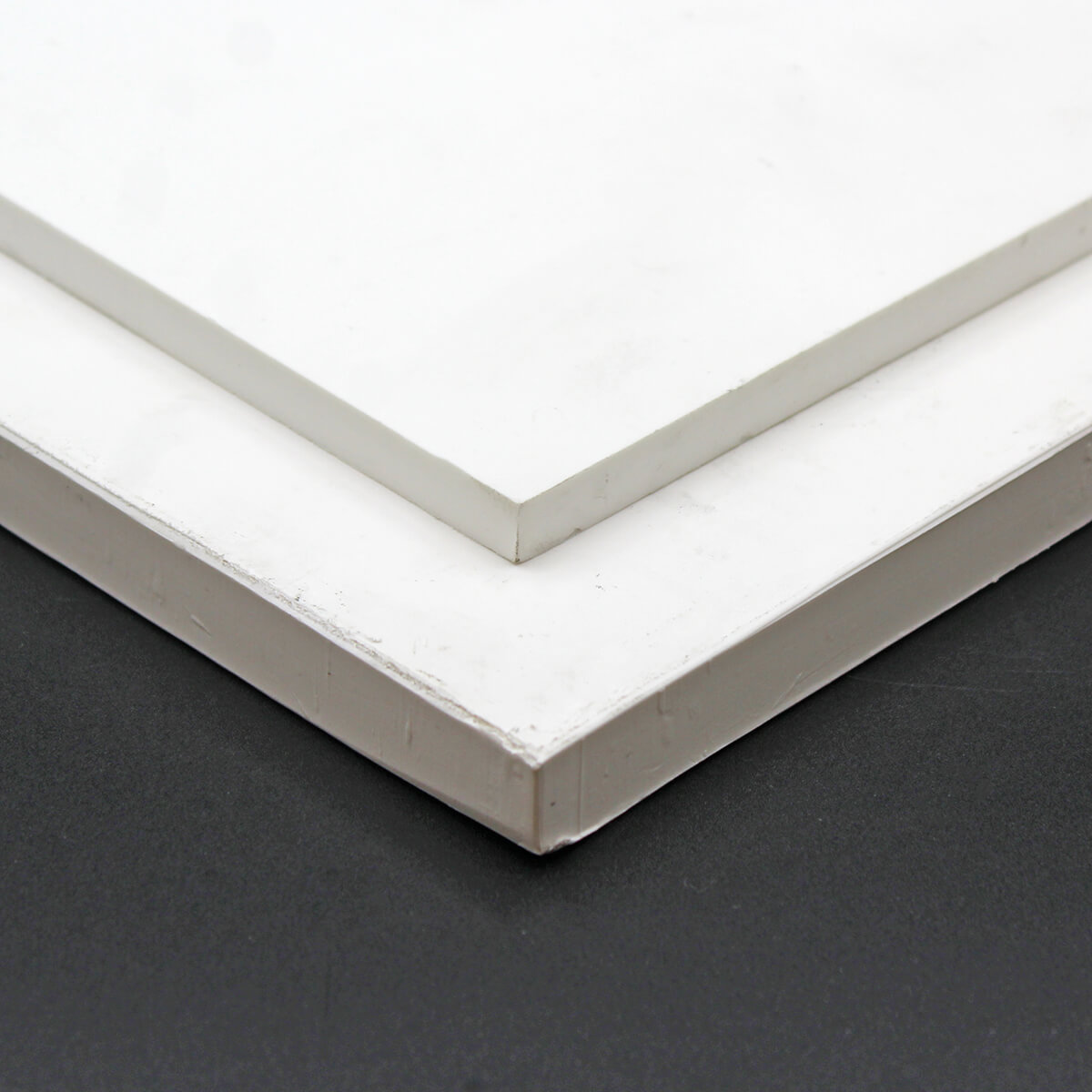

Slide 1 of 4, currently active

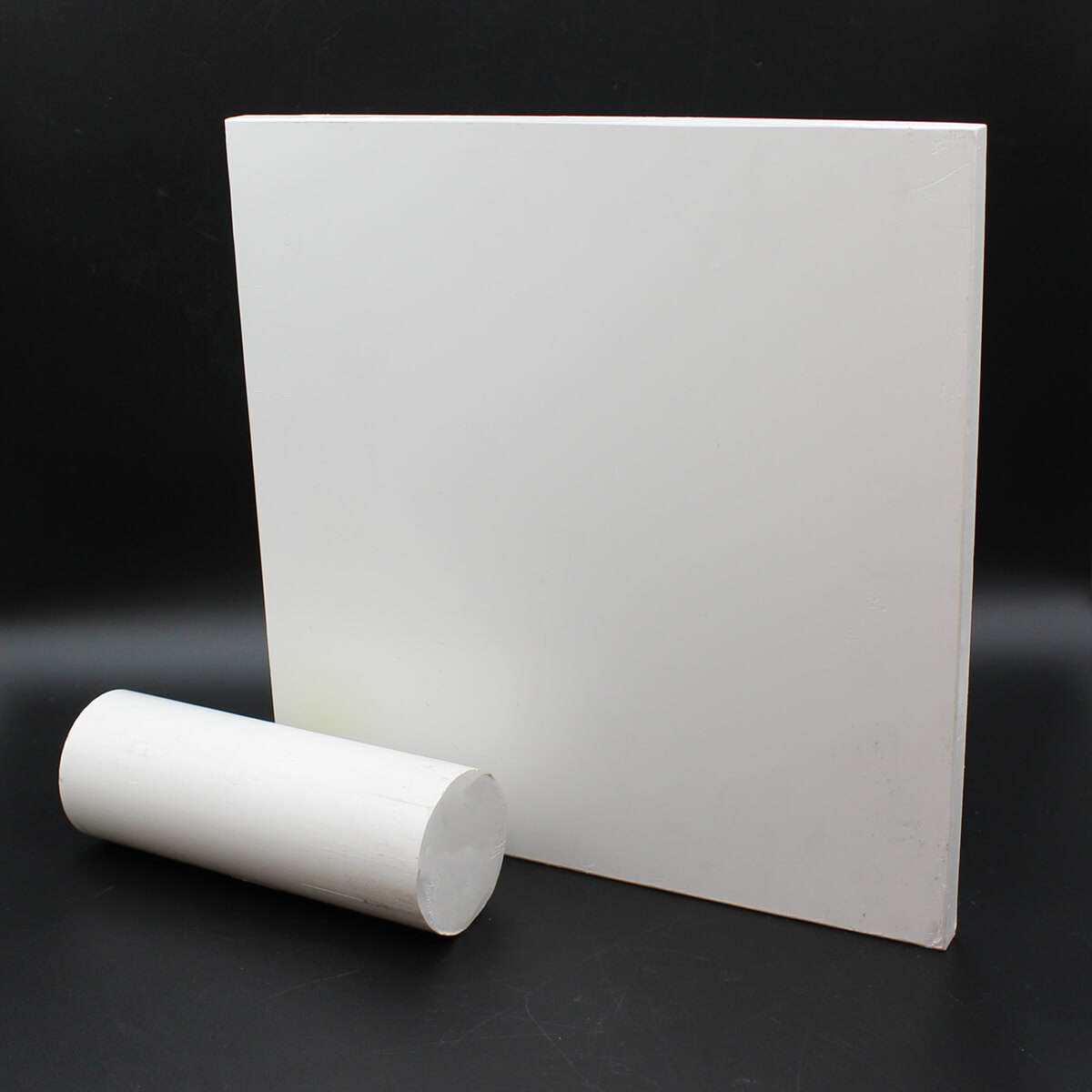

Slide 2 of 4

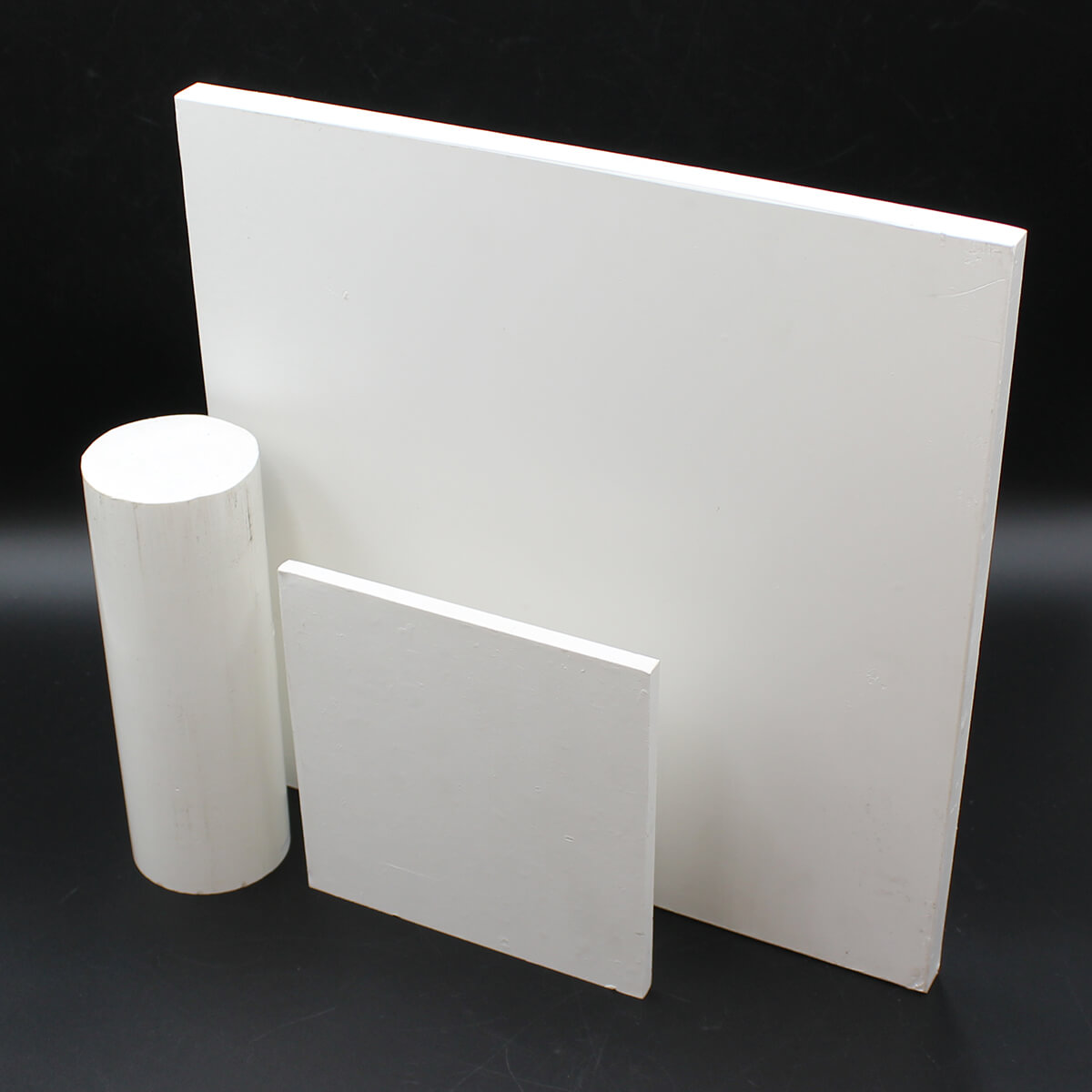

Slide 3 of 4
Slide 4 of 4

General Info

Semitron® ESd 500HR is a static dissipative reinforced PTFE (PolyTetraFluoroEthylene). This material has the same general properties as unfilled PTFE, but with static dissipative properties throughout in the high-resistivity range of 1010 to 1012. It is thermally stable to temperatures of 500°F (260°C) without degradation. Semitron® ESd 500HR offers high thermal insulation and a low coefficient of friction. Semitron® ESd is a family of static dissipative products designed for use where electrical discharge in operation is a problem. Semitron® ESd products are inherently dissipative. They do not rely on atmospheric phenomena (humidity) to activate, nor are surface treatments used to achieve dissipation. Static electicity is dissipated through these products as readily as it is dissipated along the surface.

Click for more information on the complete line of Semitron Plastics

Key Properties

Surface Resistivity: 10^10 – 10^12 Ohms/Sq (Antistatic Range)
Thermal Performance To 500°F (260°C) Continous Use
Thermally Insulative
Very Low Coefficient of Friction
Broad Chemical Resistance
Low Outgassing Material
Total Mass Loss (TML%) .40%
Collected Volatile Condensable Materials (CVCM%) 0.00%
Water Vapor Regained (WVR%) 0.01%

Limitations

High Loads
Subject to Creep, Cold Flow
Thermal Expansion
Tight Tolerance Applications

Applications

Circuit Boards
Components for High Speed Electronic Printing
Hard Disk Drives Components
Integrated Circuits Components
Photovoltaic Processing Equipment
Sensitive Processing Components in a Wide Range of Semiconductor Processes

Resin Trade Names

Manufacturer Trade Names

Semitron® ESd 500HR PTFE

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Available Colors

White

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of Semitron ® ESd 500 HR PTFE

DETAIL
Description			Value
Material Type			Semi-Crystalline Thermoplastic Fluoropolymer
Chemical Name			PTFE Polytetrafluoroethylene
Trade Name			SEMITRON® ESD 500HR
Additives			Proprietary Additives
Color			White
Manufacturer			Quadrant
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	2.3
	ASTM D792	lb/in³	0.083
Water Absorption, 24 hrs, Immersion	ASTM D570	% by wt.	0.03
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	1,100
Tensile Modulus	ASTM D638	psi	300,000
Tensile Elongation at Break	ASTM D638	%	50
Flexural Strength	ASTM D790	psi	2,200
Flexural Modulus	ASTM D790	psi	500,000
Compressive Strength	ASTM D695	psi	4,000
Compressive Modulus	ASTM D695	psi	250,000
Hardness	ASTM D785	NA	Rockwell R50
IZOD Impact-Notched	ASTM D256	ft-lb/in	1
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D696	x 10-5 in./in./°F	5.7
Heat Deflection Temp	ASTM D648	°C at 264 psi	132
	ASTM D648	°F at 264 psi	270
Melting Point Temp	ASTM D3418	°C	327
	ASTM D3418	°F	621
Max Continuous Operating Temp		°C	260
		°F	500
Minimum Operating Temp		°C	-200
		°F	-328
Thermal Conductivity	ASTM C117	BTU-in/ft²-hr-°F	5.3
	ASTM C117	x 10^4 cal/cm-sec-°C	18.3
Flammability Rating	UL94	NA	V-0
ELECTRICAL
Property	Test	Unit of Measure	Value
Dielectric Strength	ASTM D149	V/mil	390
Dielectric Constant at 1 MHz	ASTM D150	NA	2.9
Surface Resistivity	ANSI/ESD STM 11.11	ohm/square	10^10 - 10^12
COMPLIANCE
Description			Value
FDA			No
USDA			No
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
UV Resistant			Yes
Relative Cost			$$$$
Machinability			3

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

Semitron® is a registered trademark of Quadrant Engineering Plastic Products.
