Semitron ® ESd 480 PEEK

Compliance Info

Slide 1 of 3, currently active
Slide 2 of 3
Slide 3 of 3

General Info

Semitron ® ESd 480 is a static dissipative reinforced PolyEtherEtherKetone (PEEK). This material has similar general properties as Semitron ® ESd 520HR, but with the more chemically resistant properties of PEEK base material. Semitron ® ESd 480 has static dissipative properties throughout -- resistivity in the range of 10^5 to 10^8 ohm/square. It is thermally stable to temperatures of 475°F (248°C) without degradation and offers high structural strength and stiffness combined with excellent dimensional stability. In addition, Semitron ® ESd 480 exhibits the excellent chemical resistance properties of standard PEEK, including resistance to weak acids, all alkalies, aliphatic and aromatic hydrocarbons, ketones, esters, chlorinated solvents, alcohols, and inorganic salt solutions (all at 73°F). Semitron ® ESd 480 is not resistant to concentrated acids.

Click for more information on the complete line of Semitron Plastics

Key Properties

Surface resistivity 10^5 – 10^8 Ohm/Square (Static Dissipative Range)
Thermal performance to 480°F (248°C) Continuous Use
Excellent Chemical Resistance
Excellent Dimensional Stability
Semitron® ESd products are inherently dissipative. They do not rely on atmospheric phenomena (humidity) to activate, nor are surface treatments used to achieve dissipation. Static electricity is dissipated through these products as readily as it is dissipated along the surface.

Limitations

Poor Chemical Resistance to Halogens and Their Acids Including Bromine, Chlorine, Fluorine, HBr and HF

Applications

Burn in Test Sockets, Contactors & Nests
Critical Test Fixture Applications
Electronic Device Handling Equipment
High Temp Fixtures That Require Static Control
Structural Applications in Wet Process Tools
Wafer Handling Components

Resin Trade Names

Manufacturer Trade Names

Semitron® Esd 480

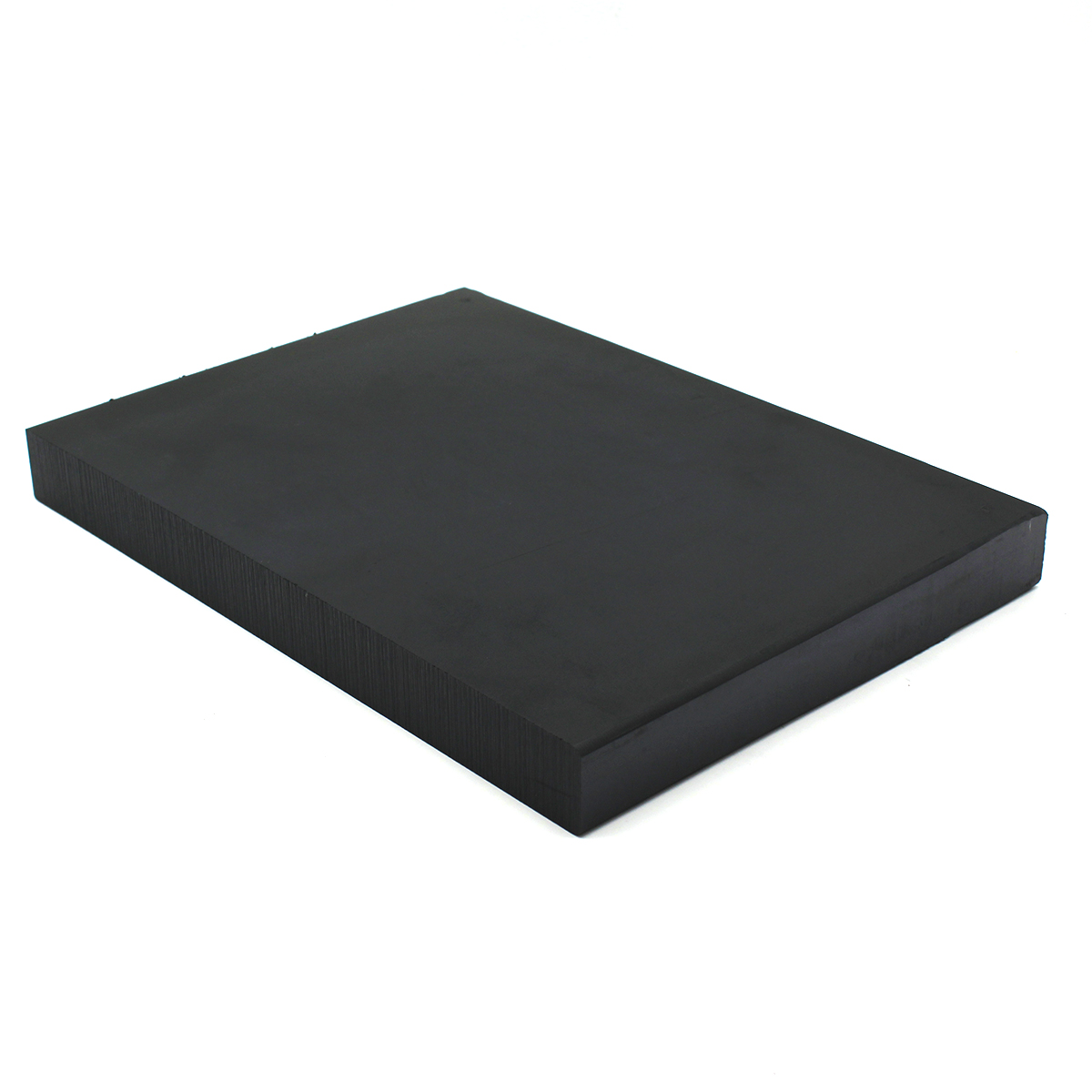

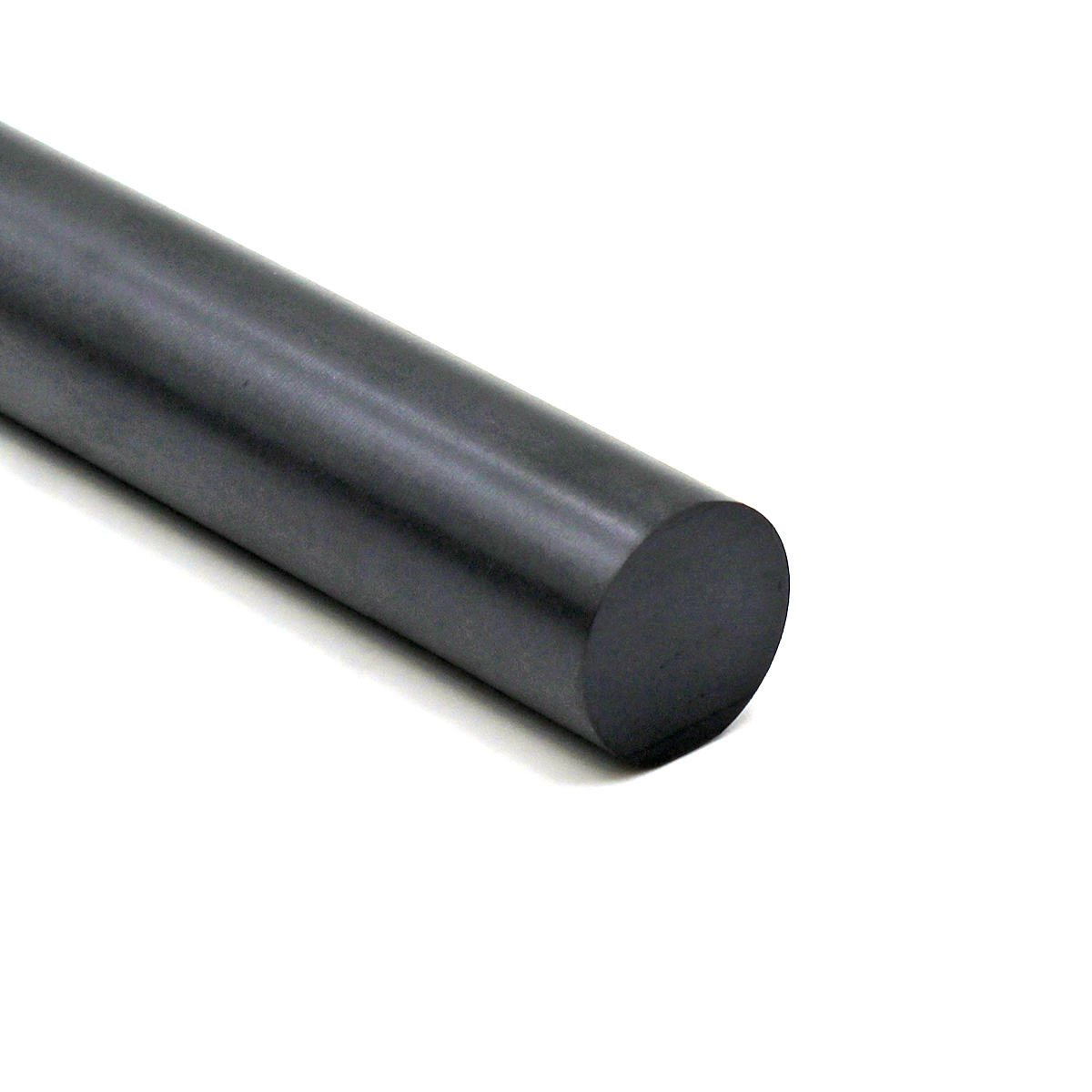

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Available Colors

Black

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of Semitron ® ESd 480 PEEK

DETAIL
Description			Value
Material Type			Semi-Crystalline Thermoplastic
Chemical Name			PEEK Polyetheretherketone
Trade Name			Semitron® Esd 480
Additives			Proprietary ESD Additives
Color			Black
Manufacturer			Quadrant
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.47
	ASTM D792	lb/in³	0.053
Water Absorption, 24 hrs, Immersion	ASTM D570	% by wt.	0.18
Water Absorption, Saturation, Immersion	ASTM D570	% by wt.	1.65
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	14,500
Tensile Modulus	ASTM D638	psi	940,000
Tensile Elongation at Break	ASTM D638	%	1.5
Flexural Strength	ASTM D790	psi	21,000
Flexural Modulus	ASTM D790	psi	1,000,000
Compressive Strength	ASTM D695	psi	26,500
Compressive Modulus	ASTM D695	psi	570,000
Hardness	ASTM D785	NA	Rockwell M107 (R122)
IZOD Impact-Notched	ASTM D256	ft-lb/in	1
Dynamic Coefficient of Friction	QTM 55007 (Dry vs Steel)	NA	0.2
Wear K Factor	QTM 55010	in³-min/ft-lbs-hr	200
Limiting PV	QTM 55007	psi-fpm	20,000
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D696	x 10-5 in./in./°F	1.7
Heat Deflection Temp	ASTM D648	°C at 264 psi	260
	ASTM D648	°F at 264 psi	500
Melting Point Temp	ASTM D3418	°C	340
	ASTM D3418	°F	644
Max Continuous Operating Temp		°C	246
		°F	475
Minimum Operating Temp		°C	-60
		°F	-76
Thermal Conductivity	ASTM C117	BTU-in/ft²-hr-°F	2.36
Flammability Rating	UL94	NA	V-0
ELECTRICAL
Property	Test	Unit of Measure	Value
Dielectric Constant at 1 MHz	ASTM D150	NA	10.9
Dissipation Factor at 1 MHz	ASTM D150	NA	0.518
Surface Resistivity	ANSI/ESD STM 11.11	ohm/square	10^6 – 10^9
COMPLIANCE
Description			Value
FDA			No
USDA			No
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
UV Resistant			Yes
Relative Cost			$$$$$$
Machinability			4

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

Semitron® is a registered trademark of Quadrant Engineering Plastic Products.
