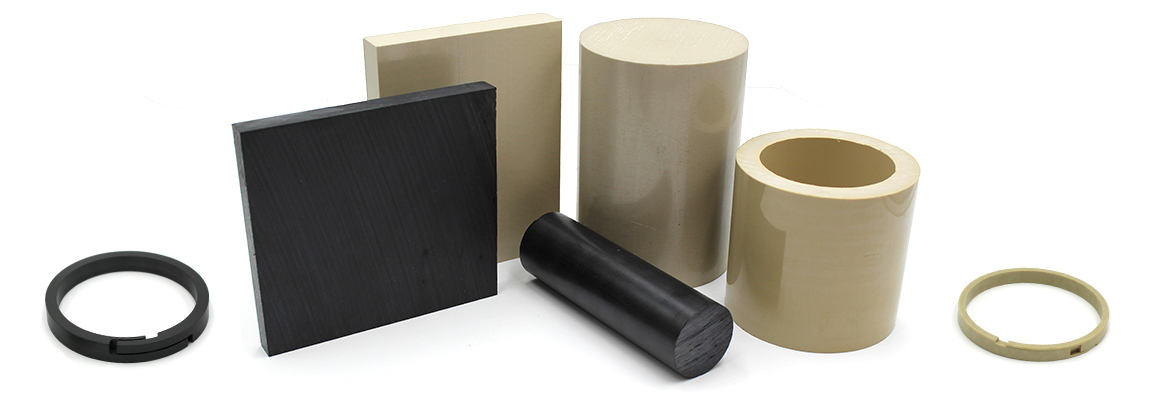

PEEK Polyetheretherketone Plastic Product Family

Slide 1 of 6, currently active
Slide 2 of 6
Slide 3 of 6
Slide 4 of 6
Slide 5 of 6
Slide 6 of 6

About PEEK Polyetheretherketone

PEEK is an abbreviation for PolyEtherEtherKetone, a high performance engineering thermoplastic. PEEK grades offer chemical and water resistance similar to PPS (PolyPhenylene Sulfide), but can operate at higher temperatures. Available in glass, carbon, bearing grade and other filled grades in sheet, rod, tube, film and precision machined or molded parts.

PEEK shapes and parts are available for a wide range of resins and processes that include extrusion, injection molding, compression molding, spin casting and calendaring. Depending on your application requirements, desired properties, part size and volume we can help match the right PEEK grade and process to optimize your part performance and material yields to eliminate excessive cost.

Click here for more information on Ketron® PEEK , TECAPEEK® or SUSTAPEEK®

BUY PEEK ONLINE

Need help deciding? Use our plastics selection tool

PEEK Polyetheretherketone Key Properties

PEEK can be used continuously to 480°F (250°C) and in hot water or steam without permanent loss in physical properties. For hostile environments, PEEK is a high strength alternative to fluoropolymers. PEEK carries a V-0 flammability rating and exhibits very low smoke and toxic gas emission when exposed to flame. And unfilled PEEK is approved by the FDA for food contact applications (since 1998).

High Temperature Performance (480F Continuous Use)	Mechanical Strength	Dimensional Stability
Excellent Chemical Resistance	Low Smoke & Toxic Gas Emission	Carbon Filled & Bearing Grades offer Excellent Wear Properties

Common PEEK Grades We Stock

Common Name	Shape Trade Name*	Resin Trade Name*	MIL Spec**	Description
PEEK - Unfilled Natural	Ketron ® 1000 TECAPEEK ® SustaPEEK ® GEHR PEEK™ ZL ® 1500	VICTREX™ PEEK 450G™* KetaSpire® PEEK KT-820 NT* VESTAKEEP® PEEK*	MIL-P-46183 Type I**	Unfilled virgin PEEK offers a continuous use temp 480°F (250°C) and high strength, low moisture absorption, it is electrically insulative, with a V-0 flammability rating and exhibits very low smoke and toxic gas emission when exposed to flame. Unfilled PEEK is FDA compliant. PEEK (Unfilled) general purpose grade is unreinforced and offers the highest elongation and toughness of all PEEK grades.
PEEK CA30 - 30% Carbon Filled	Ketron ® CA30 PEEK TECAPEEK ® CF30 SustaPEEK ® CF 30	Victrex™ PEEK 450 CA30™* KetaSpire® PEEK KT 820 CF30* VESTAKEEP® PEEK 4000 CF30*	MIL-P-46183 Type III Class 2**	30% Carbon Filled PEEK contains carbon fibers which enhance the compressive strength and stiffness of PEEK, and dramatically lowers its expansion rate. It offers designers optimum wear resistance and load carrying capability in a PEEK-based product. This grade provides 3½ times higher thermal conductivity than unreinforced PEEK -- dissipating heat from the bearing surface faster.
PEEK GF30 - 30% Glass Filled	Ketron ® GF30 PEEK TECAPEEK ® GF30 SustaPEEK ® GF 30	Victrex™ PEEK 450GL30* KetaSpire® KT 820 GF30* VESTAKEEP® 4000 GF30*	MIL-P-46183 Type II Class 3**	30% Glass Filled PEEK contains glass fibers which significantly reduces the expansion rate and increases the flexural modulus of PEEK. This grade is ideal for structural applications that require improved strength, stiffness, or stability, especially at temperatures above 300°F (150°C).

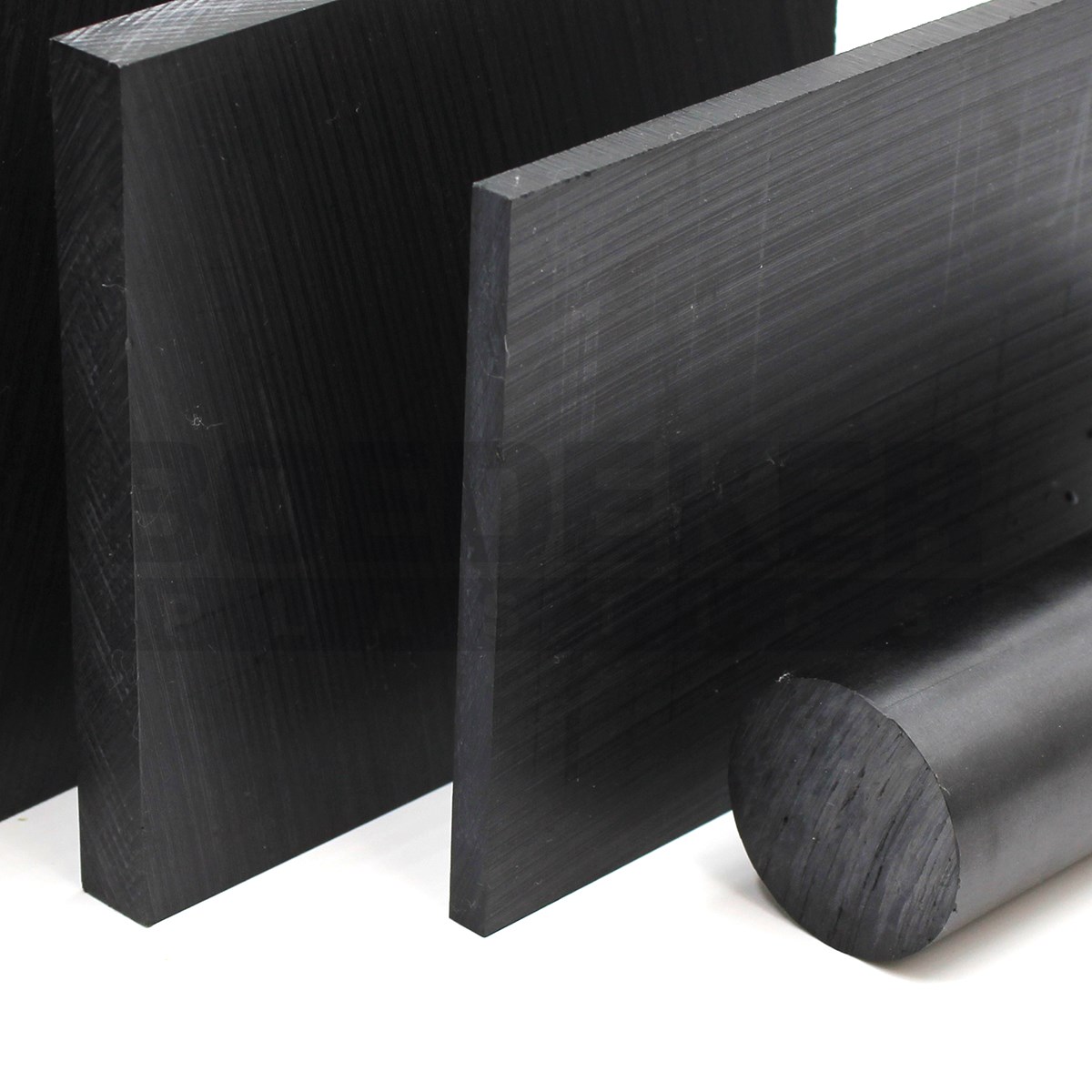

PEEK Bearing Grade	Ketron ® HPV PEEK TECAPEEK ® PVX ZL ® 1400 T	Victrex™ 450 FC30™* KetaSpire® KT-880 FW30* VESTAKEEP® 4000 FC30*	N/A	Bearing Grade PEEK contains carbon fiber reinforced with graphite and PTFE lubricants, offering the lowest coefficient of friction and the best machinability for all PEEK grades. Bearing grade PEEK has an excellent combination of low friction, low wear, high limiting PV, low mating part wear, and easy machining

*Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from PEEK shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

**Not all resins or shape trade names listed above meet the listed MIL Spec, if you require certification to a MIL Spec it must be requested at the time of order.

Additional Available PEEK Grades

PEEK Specialty Formulation Category	Primary Industries	Specialty PEEK Grades
Metal & X-Ray Detectable PEEK Formulations	Food & Beverage Processing Pharmaceutical	SustaPEEK ® XDT X Ray Detectable PEEK TECAPEEK ® UD Blue Ultra Detectable PEEK
FDA Bearing PEEK Formulations	Food & Beverage Processing Pharmaceutical	Ketron ® TX PEEK FDA Compliant Bearing Grade XP-117 TECAPEEK ® 25% PTFE Filled PEEK XP-93 TECAPEEK ® 30% PTFE Filled PEEK
PTFE Filled PEEK Formulations	Aerospace Food & Beverage Processing Medical Oil & Gas Pump, Valve & Compressor Other	XP-102 TECAPEEK ® 5% PTFE Filled PEEK XP-95 TECAPEEK ® 15% PTFE Filled PEEK XP-108 TECAPEEK ® 20% PTFE Filled PEEK XP-117 TECAPEEK ® 25% PTFE Filled PEEK XP-93 TECAPEEK ® 30% PTFE Filled PEEK
Back End Test Socket PEEK Formulations	Semiconductor	EPM-2204U-W Ceramic-Filled PEEK Semitron ® MDS 100 PEEK Semitron ® MP 370 PEEK TECAPEEK ® CMF TECAPEEK ® TS (Test Socket Grade)
Anti-Static PEEK Formulations Static Dissipative PEEK Formulations Conductive PEEK Formulations	Aerospace Alternative Energy Automotive Electrical Oil & Gas Semiconductor Other	Semitron ® ESd 480 PEEK Semitron ® ESd HPV PEEK TECAPEEK ® ELS nano
Medical Device PEEK Formulations Life Science PEEK Formulations Biocompatible PEEK Formulations USP Class VI PEEK Formulations ISO 10933 PEEK Formulations Implantable PEEK Formulations	Medical Pharmaceutical	Ketron ® CLASSIX ™ LSG PEEK Ketron ® LSG CC (Carbon Composite) PEEK Ketron ® PEEK CA30 LSG Ketron ® PEEK GF30 LSG Ketron ® PEEK LSG SustaPEEK MG (Medical Grade) PEEK TECAPEEK ® MT TECAPEEK ® MT CF30 TECAPEEK ® MT CLASSIX ™ TECAPEEK ® MT XP98 TECAPEEK ® MT XP98 XRO X-Ray Opaque
Higher Temperature Formulations	Aerospace Alternative Energy Automotive Food & Beverage Processing Oil & Gas Pump, Valve & Compressor Semiconductor Other	PEEK HT ™ TECAPEEK ® HT ™ TECAPEEK ® ST High Temp XP-96BST TECAPEEK ® ST Black PEKEKK XP-98HT TECAPEEK ® 30% Carbon Fiber High Temp PEEK XP-98ST TECAPEEK ® 30% Carbon Filled PEKEKK

Common PEEK Polyetheretherketone Applications

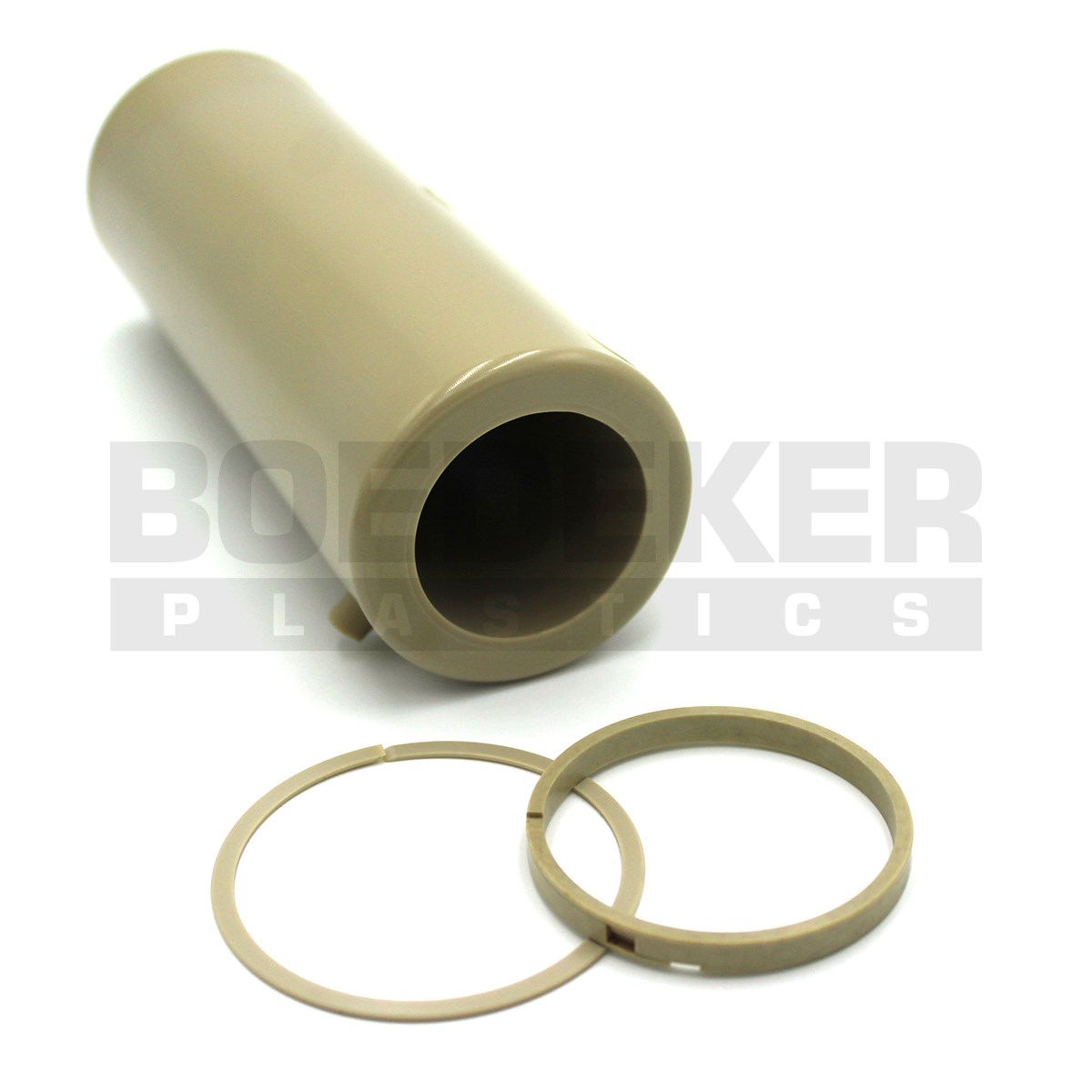

Back Up Rings	Bushings & Bearings	Connectors
Electrical Housings	Electrical Insulators	Food Processing
Gears	Oil & Gas Components	Pump, Valve & Compressor
Seals	Structural Parts	Valve Seats

Boedeker Plastics, Inc. & PEEK Polyetheretherketone

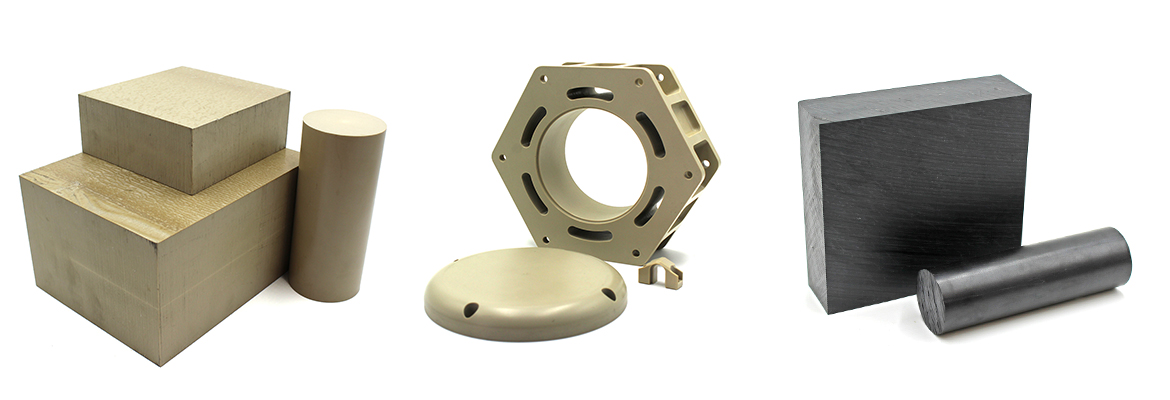

We stock all commercially available grades of PEEK sheet, rod, tube and film and offer cut to size, same day shipping on all inventoried PEEK materials. Our entire inventory of PEEK is coded for full traceability, we offer manufacturer certs. and C of C’s upon request at the time of order for all orders.

We specialize in plastics-only machining, including PEEK machining and produce CNC machined PEEK parts for prototype to production quantities. In addition, we offer injection molding for higher part volume requirements.

For clients that have ongoing part requirements, we offer just-in-time (JIT) delivery with our customer inventory services.

We also specialize in technical services for PEEK materials and parts that include material selection by application, improved part design assistance, onsite consultation and more. We stand ready to put our 1,800 years of combined experience and services to work for you.

As an alternative to onsite consultation we offer our TelePlastics™ remote support service. This is a safe and secure remote solution, for the diagnosis and recommendation of plastic solutions, by our experienced Technical Service staff, utilizing the latest in telecommunication technology.
